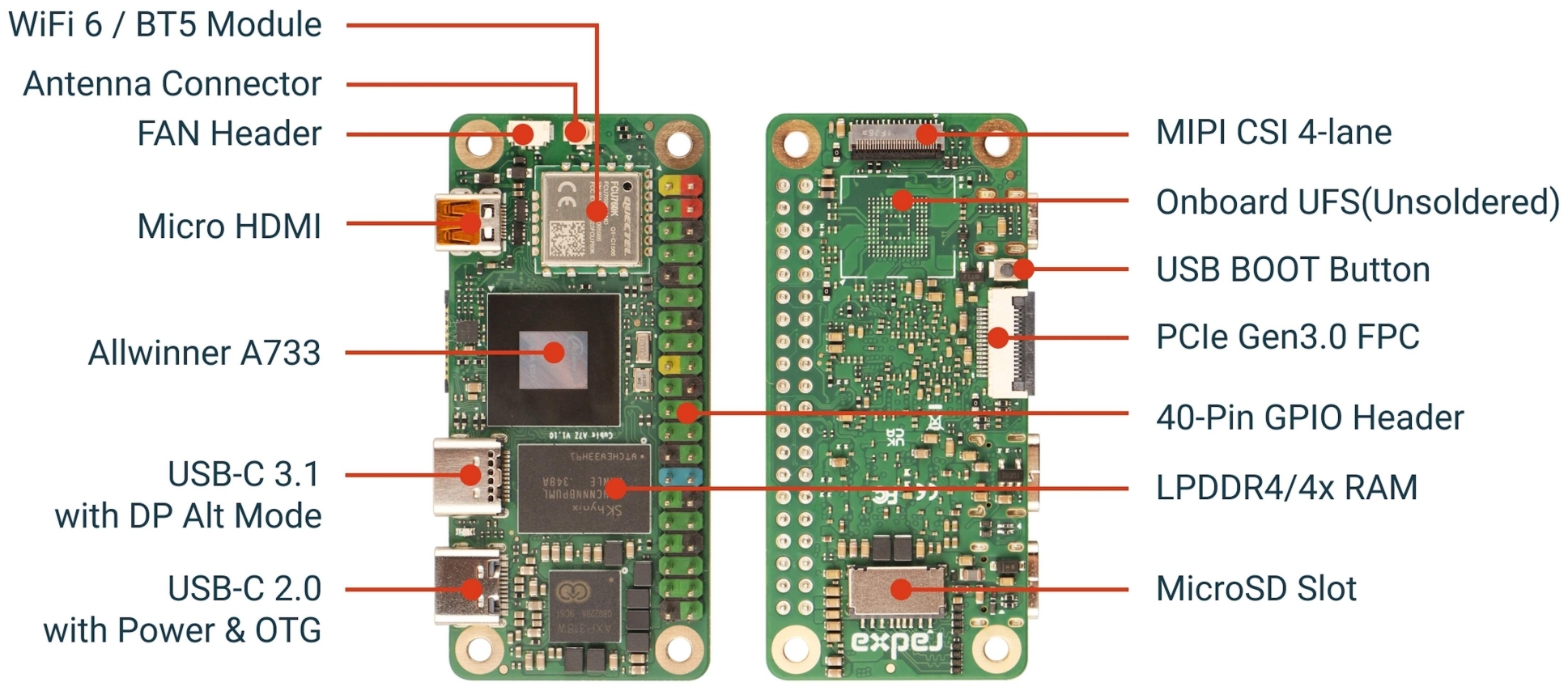

Radxa Cubie A7Z is an ultratiny Single Board Computer (SBC) that redefines compactness in the industry. Measuring just 65 × 30 mm, the Cubie A7Z delivers classleading performance and advanced features in a remarkably small form factor. Its ultracompact size allows for seamless integration into spaceconstrained projects, portable devices, and embedded applications where every millimeter counts, while still providing exceptional mechanical compatibility and reliability.


Equipped with a powerful Neural Processing Unit (NPU) delivering up to 3 TOPS of AI acceleration, the Cubie A7Z is wellsuited for edge AI applications such as image recognition, smart vision, voice processing, robotics, and intelligent IoT devices. Its NPU enables efficient ondevice inference, reducing latency and enhancing privacy for AI workloads at the edge.

Key Features

Hardware

• Processor: Allwinner A733 (Dualcore CortexA76 up to 2.0GHz + Hexacore Cortex A53 up to 1.8GHz)


• GPU: Imagination BXM464 MC1 (OpenGL ES 3.2, Vulkan 1.3, OpenCL 3.0)


• NPU: 3 TOPS AI acceleration


• Memory: 1GB / 2GB / 4GB / 8GB / 16GB LPDDR4/4x


• Storage: Optional 64GB / 128GB / 256GB / 512GB highperformance 2lane UFS 3.0 onboard chip


• Wireless: WiFi 6 & Bluetooth 5.4 with external antenna


• Display: 4K output via Micro HDMI


• Video Decode: H.265/VP9/AVS2 (up to 8K24p)


• Video Encode: H.264/H.265 (up to 4K30p)

Interfaces

• 1 × TF Card Slot
• 1 × Micro HDMI port (up to 4K60p)
• 1 × USB 2.0 OTG TypeC port (power & data)
• 1 × USB 3.1 OTG TypeC port (DP Alt mode)
• 1 × PCIe Gen3 x1 FPC connector
• 40pin GPIO header

Software

• Debian Linux support
• Android 13 support
• Hardware access/control library for Linux/Android

Combined with support for both Android 13 and Debian Linux, the Cubie A7Z enables a flexible software environment for prototyping and deployment across diverse use cases.


Electrical Specifications

Power Requirements
Radxa Cubie A7Z supports DC +5V input:

• 5V/1A power adapter via USB TypeC power port
• 5V power supplied through GPIO pins 2 & 4

Peripherals

GPIO Interface
Radxa Cubie A7Z provides a 40pin GPIO expansion header, compatible with most market accessories.

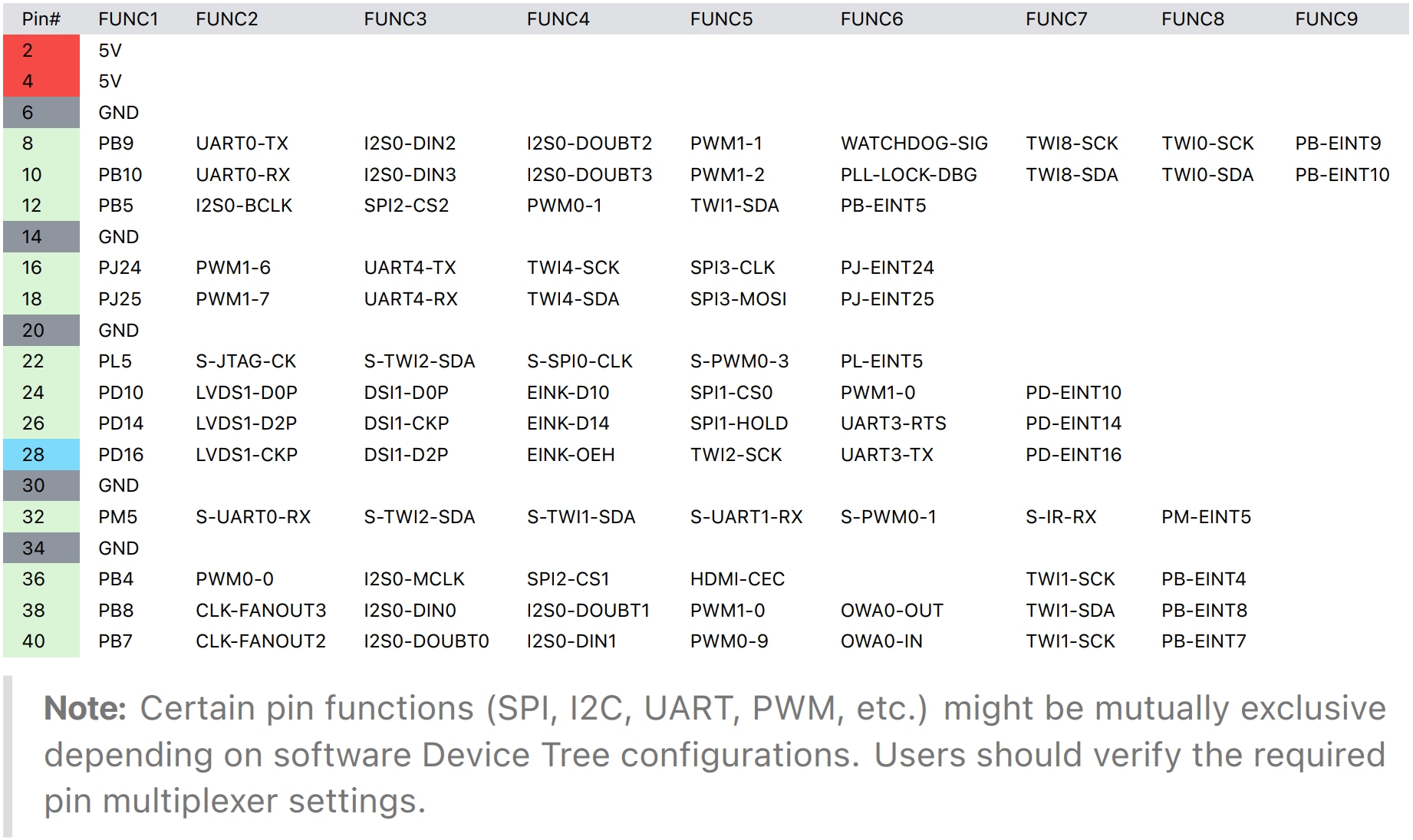

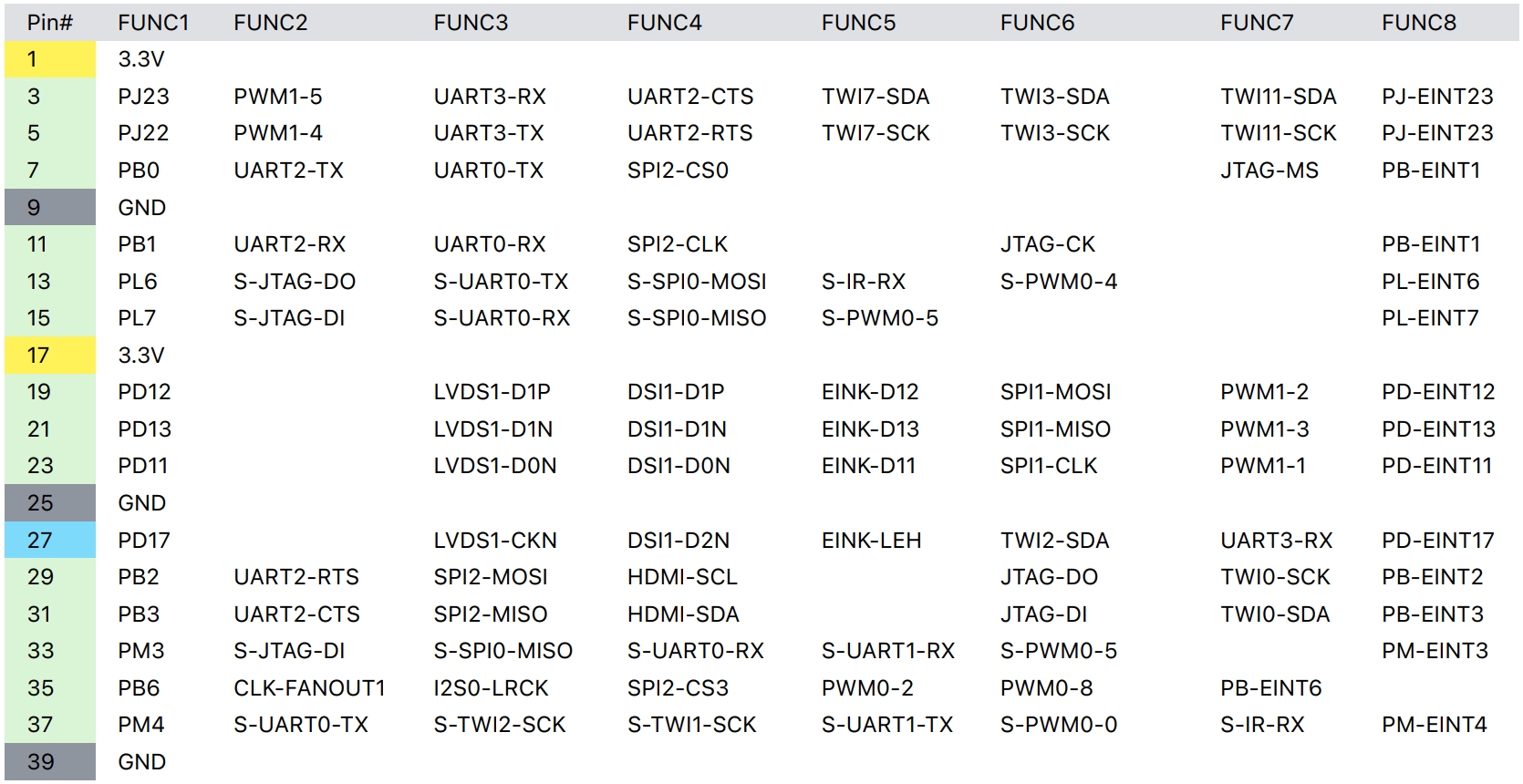

GPIO Alternate Functions


USB
Radxa Cubie A7Z features a typec USB 3.1 OTG port with DP Alt mode available, with a downstream current limit of approximately 1A. It also includes a USB 2.0 OTG port (Type C), which can be powered by a 5V PSU or a PC/laptop USB port, supporting both power and data transfer.

HDMI
Radxa Cubie A7Z provides 1 × Micro HDMI port with CEC and HDMI 2.0 support, allowing for resolutions up to 4K60p.

FPC Connector
The Cubie A7Z offers a FPC connector providing PCIe 3.0 onelane signal, supporting expansion of SSD, SATA, 2.5G Ethernet ports and other devices, This requires additional expansion board / HAT.

Temperature Range and Thermals
Recommended ambient operating temperature: 0°C to 50°C
The board dynamically adjusts CPU clock speed and voltage to minimize thermal output during idle or light load, and increases them under heavy load. The internal governor ensures the CPU temperature does not exceed 85°C.
The Cubie A7Z operates reliably without additional cooling for typical use. For sustained heavy workloads or operation in hightemperature environments, additional cooling may be required.

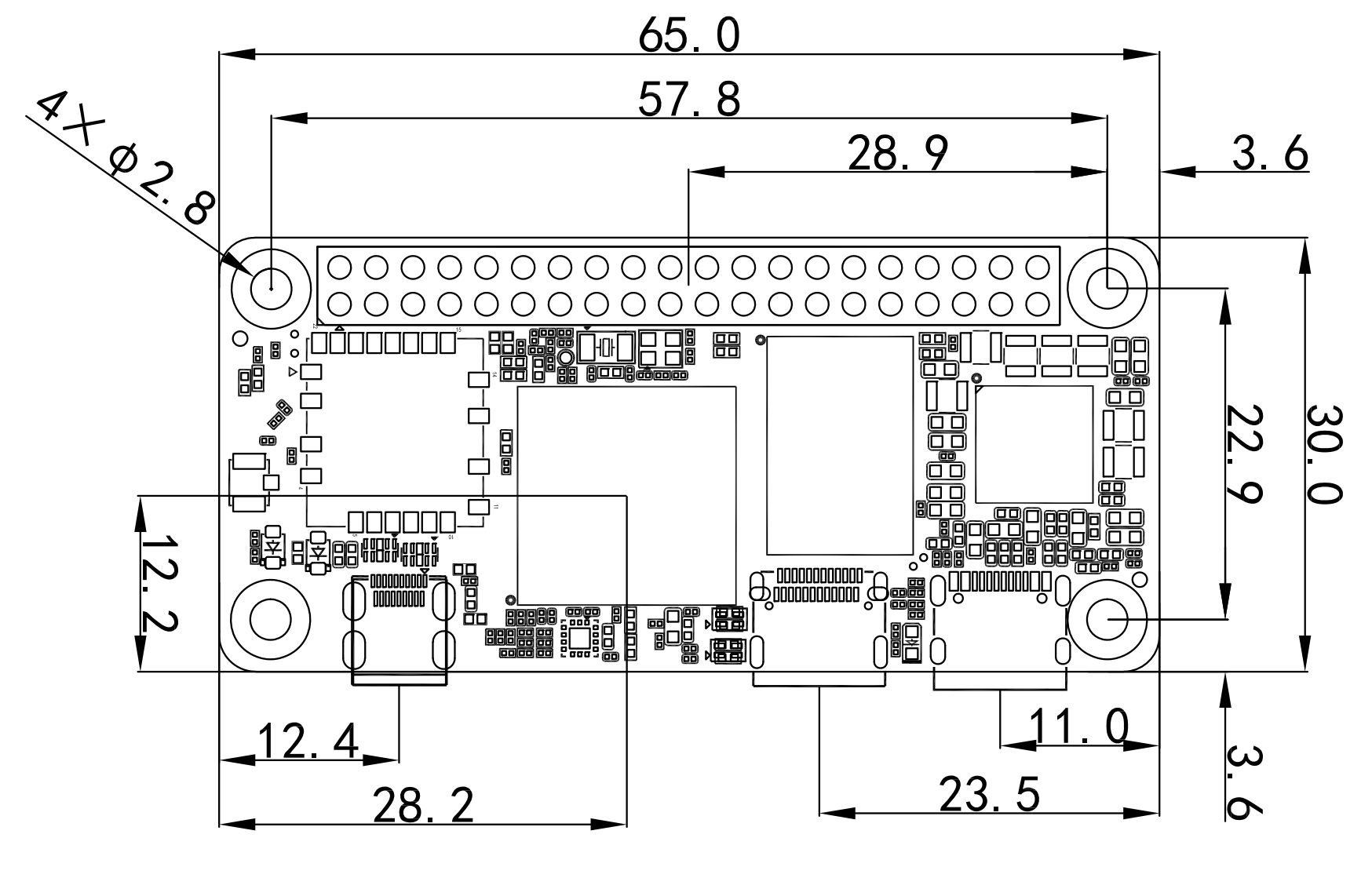

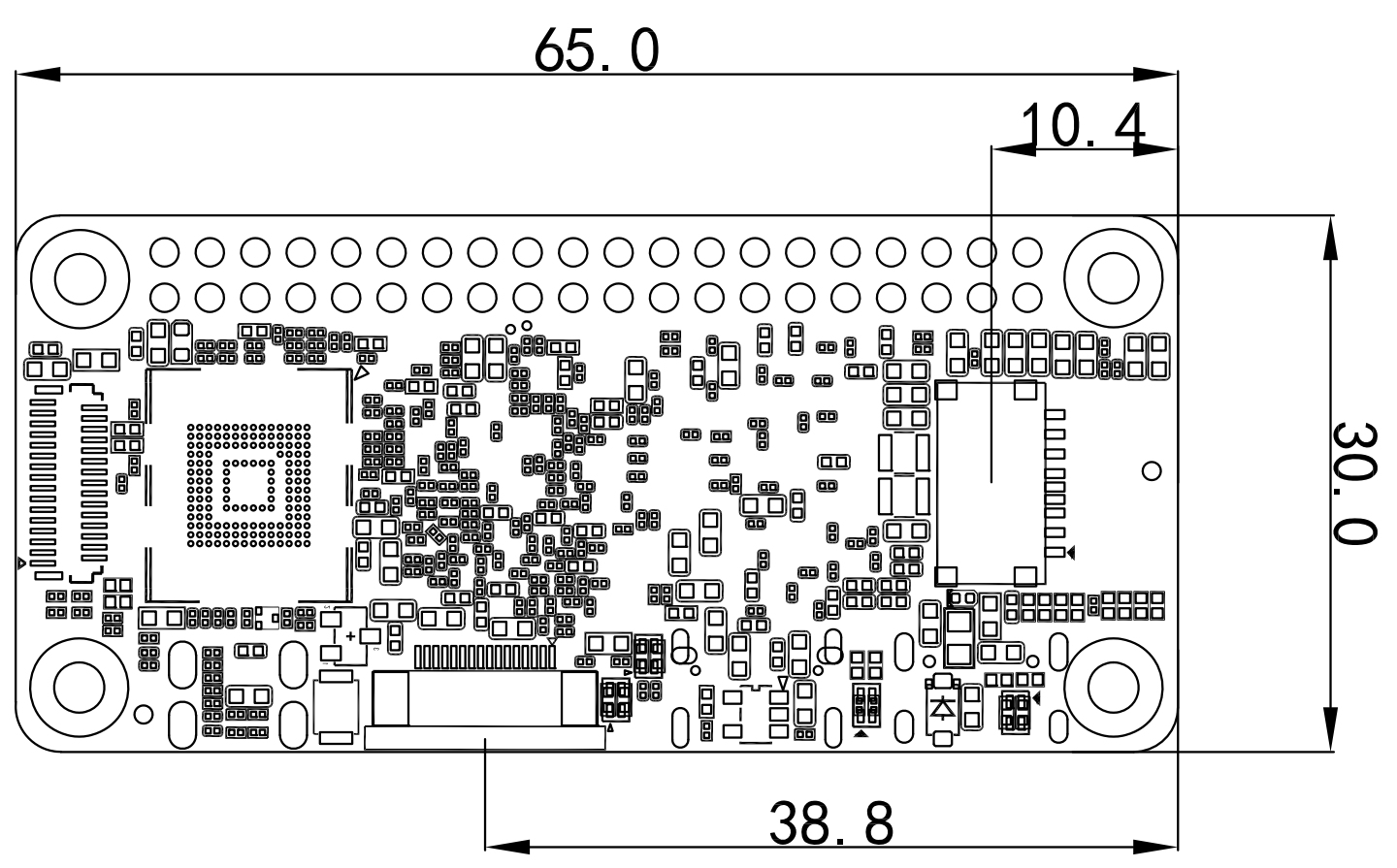

Mechanical Specification
Note: All dimensions are in millimeters (mm).

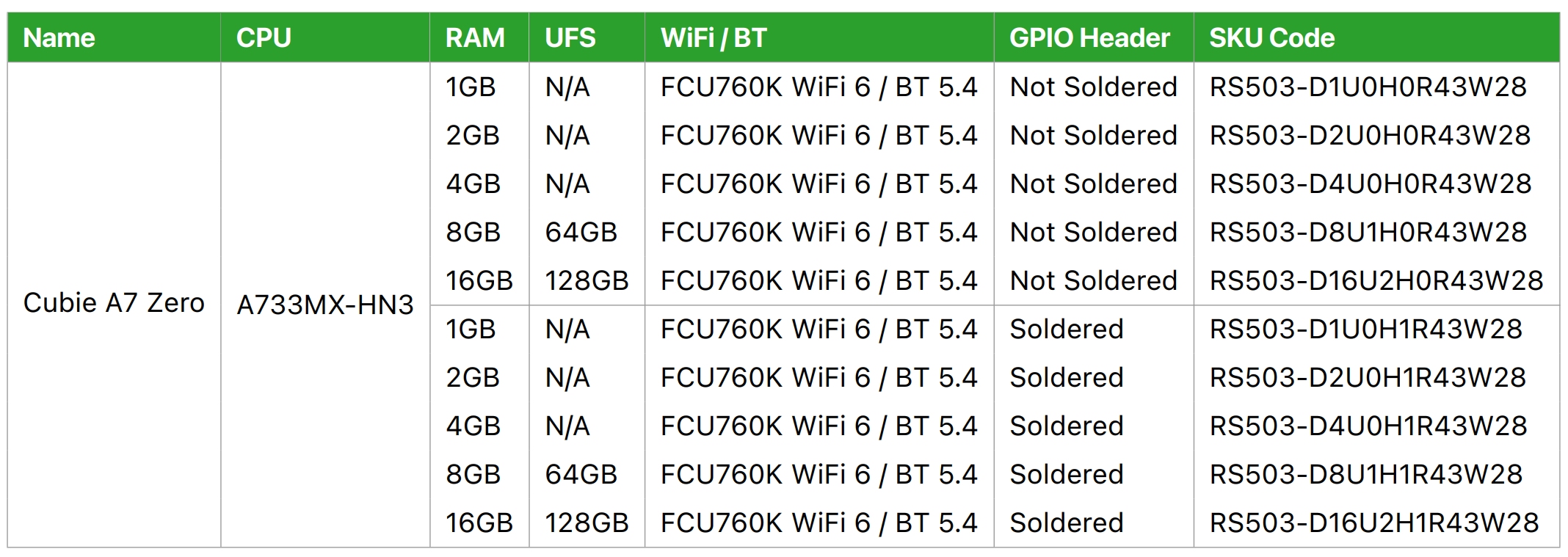

Models and SKUs


Availability
Radxa guarantees availability of the Radxa Cubie A7Z until at least September 2034.
